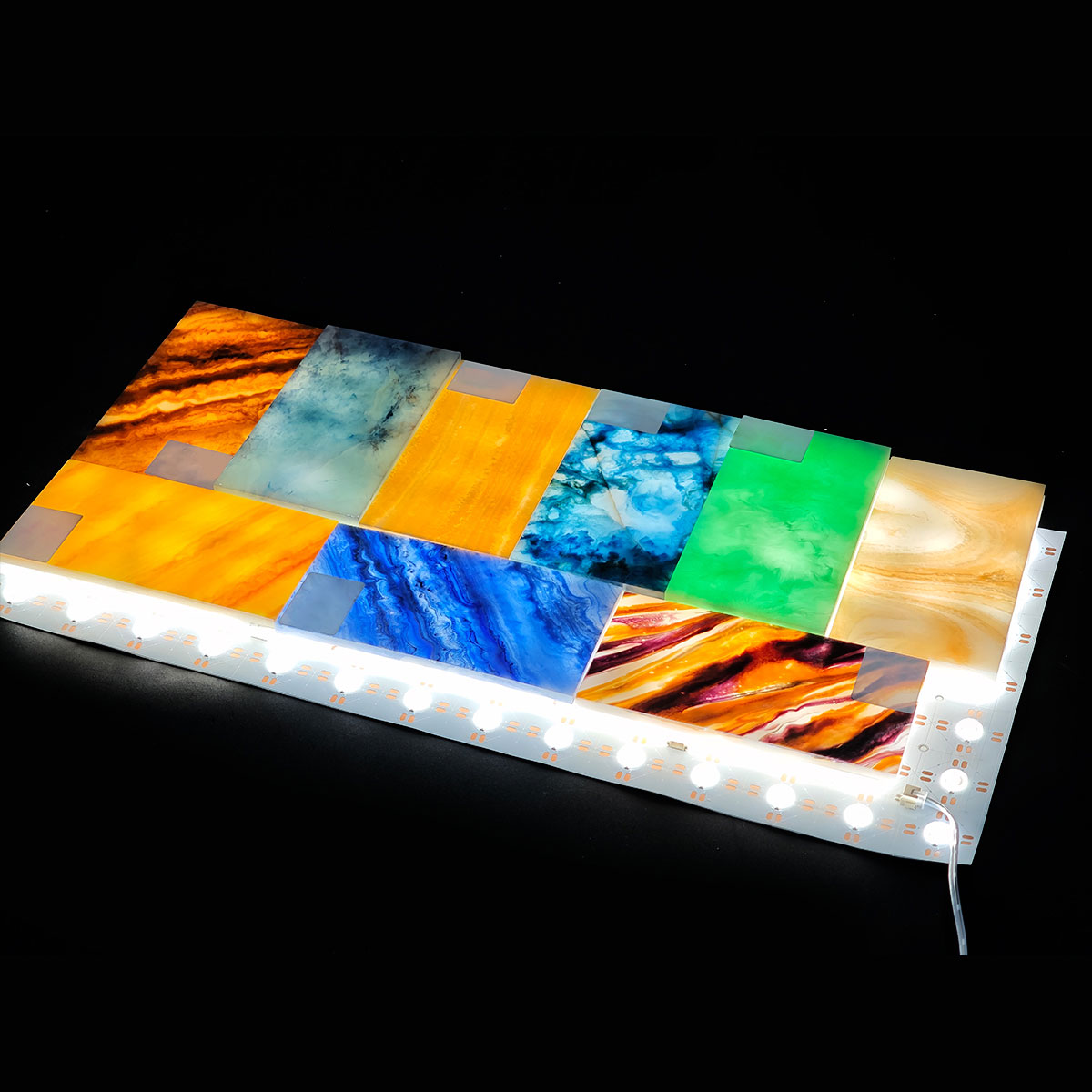

Elevating Architectural Stone: The Complete Guide to the LED Flexible Marble Light Board

In high-end architectural design and commercial space planning, natural stone—especially translucent marble, onyx, quartzite, and alabaster—serves as the ultimate statement of luxury. When illuminated from behind, these organic materials reveal intricate veining, deep depth, and rich color variations that remain invisible under standard ambient room lighting. However, backlighting stone surfaces historically presented significant engineering hurdles. Traditional rigid backlight boxes and linear LED tape lights often produced uneven light distribution, unsightly hot spots, and bulky installation footprints that could not accommodate curved walls or organic furniture outlines.

To solve these complex optical and structural challenges, modern lighting designers and stone fabricators are turning to the advanced LED Flexible Marble Light Board. Designed specifically for ultra-thin, uniform surface illumination, this flexible matrix lighting system adapts seamlessly to dynamic architectural forms. Whether wrapping around an arched feature wall, illuminating a curved reception desk, or glowing beneath a quartzite kitchen island, the LED Flexible Marble Light Board delivers smooth, edge-to-edge luminance that transforms natural stone into a breathtaking visual masterpiece.

Key Product Advantages and Aesthetic Engineering

The modern LED Flexible Marble Light Board is far more than a simple illumination fixture—it is a sophisticated design tool crafted to overcome the physical limitations of static lighting. Below are the standout advantages and engineering highlights that make this product an indispensable asset for luxury builds:

1. Eliminate Hot Spots: Seamless Optical Diffusion

One of the most common flaws in backlit stone installations is "point glare"—distracting bright dots where individual LEDs shine through thin marble slabs. Say goodbye to glaring light spots and give stone and home a second layer of vitality. Our light boards feature a ultra-high-density SMD diode matrix paired with wide 120-degree optical beam distribution. This layout ensures that light blends completely within extremely shallow cavity depths, producing a continuous, velvety glow across the entire stone surface without shadowy gaps or harsh light points.

2. Multi-Axis Flexibility for Curved and Irregular Structures

Unlike rigid LED tiles that are restricted to flat planes, the flexible substrate of this light board allows it to bend, contour, and fold effortlessly. It can be wrapped around cylindrical columns, contoured bar fronts, serpentine counters, and custom geometric furniture. This flexibility enables stone fabricators to design backlit features without structural compromises.

3. An Artifact for Creating a Sophisticated Atmosphere

Lighting dictates the mood of a space. Not only a lamp, but also an artifact for creating a sophisticated atmosphere, this light board offers tunable white (CCT) control and smooth dimming capabilities (from 100% down to 0.1%). Operators can transition the mood of a space from crisp, clean white for daytime display to a warm, intimate amber glow in the evening, highlighting the natural warmth of translucent marble.

4. Field-Cuttable Grid & Rapid Installation

On-site adjustments are often necessary when fitting stone slabs around electrical outlets, plumbing fixtures, or architectural corners. The LED Flexible Marble Light Board features a grid circuit design cuttable along both horizontal and vertical lines. Installers can trim the sheet with standard shears on-site without breaking the electrical circuit of adjacent sections, significantly reducing labor time and installation errors.

Target Application Scenarios in Modern Interiors

The adaptability of the LED Flexible Marble Light Board makes it an essential choice across a wide variety of high-end residential, commercial, and hospitality settings. Key applicable scenarios include:

1. Translucent Marble Wall & TV Background Wall

In luxury residences and penthouse living rooms, the TV background wall is often the focal point of the interior. Mounting translucent marble or book-matched quartzite panels over our flexible light boards creates a glowing backdrop. The subtle, diffused illumination reduces eye strain during screen viewing while adding dramatic depth and texture to the living space.

2. Hotel Lobby Backgrounds & Reception Counters

First impressions in hospitality design rely heavily on grand visual elements. A backlit hotel lobby background or glowing marble reception desk immediately communicates prestige and refinement. The high lumen output and reliable thermal management of the light board ensure continuous, flicker-free operation during long commercial operating hours.

3. Kitchen Islands & Illuminated Waterfall Countertops

Contemporary kitchen designs frequently feature waterfall kitchen islands crafted from translucent stone. Installing flexible light boards underneath the countertop overhang or behind vertical stone facings creates a glowing centerpiece. Operating on a safe 24V low-voltage system, these light boards can be safely integrated into kitchen millwork.

4. Wine Cabinet & Luxury Display Cabinets

In high-end wine cabinets, boutique alcoves, and jewelry display cases, lighting must accentuate the items on show without introducing excessive radiant heat. The ultra-thin profile of the flexible marble light board fits neatly into tight cabinet backings, casting a soft, heat-free background glow that makes vintage wine bottles, crystal glassware, and luxury items stand out vividly.

Technical Performance Matrix

For lighting engineers, electrical contractors, and project estimators, the following table summarizes the key performance metrics of our flexible marble backlighting systems:

Best Practices for On-Site Stone Backlighting Installation

Proper installation is key to achieving a flawless, long-lasting backlit stone installation. Follow these standardized procedures when installing the LED Flexible Marble Light Board:

1. Surface Preparation & Substrate Checks: Ensure the mounting surface (plywood, aluminum composite, or drywall) is flat, clean, and free of dust or oils. For wet areas or kitchen islands, ensure a moisture barrier is in place.
2. Layout & Grid Trimming: Measure the targeted area and dry-fit the light boards. If trimming is required to fit around outlets or curved corners, cut strictly along the marked cut lines using sharp shears.
3. Board Mounting & Interconnection: Peel back the protective liner from the pre-applied high-tack 3M thermal adhesive tape and press the board firmly onto the backing substrate. Connect adjacent sheets using push-in solderless terminal connectors or direct lead wiring.
4. Diffuser Gap Verification: Maintain a minimum gap of 1.0 to 1.5 inches (25mm–38mm) between the LED board and the rear surface of the stone slab. If space is tight (under 1 inch), add a thin acrylic diffusion sheet between the light board and the stone to guarantee zero light spots.
5. Electrical Testing & Final Stone Mounting: Connect the light boards to a certified 24V Class 2 power supply. Test all dimming and CCT functions before permanently mounting the translucent marble panels over the structure.

Frequently Asked Questions (B2B Customer FAQ)

Here are answers to the most common questions asked by interior architects, electrical contractors, and stone fabricators regarding the LED Flexible Marble Light Board:

Conclusion & Project Planning Support

Illuminating natural stone requires a delicate balance of mechanical precision, optical engineering, and electrical safety. The LED Flexible Marble Light Board overcomes the structural limits of traditional light fixtures, allowing architects, interior designers, and stone fabricators to turn translucent stone surfaces into glowing artistic features. From residential TV background walls and kitchen islands to grand hotel lobbies and wine cabinets, this lighting solution offers the flexibility, color accuracy, and performance needed to elevate modern spaces.

Ready to start your next architectural stone backlighting project? Request detailed CAD/DXF layouts, technical spec sheets, or custom volume pricing today to configure the perfect backlight system for your design requirements.
