Why Is the Lens-Type LED Backlight Panel the Ultimate Solution for Glowing Stone Countertops?

In high-end architectural design and luxury residential remodeling, natural and engineered translucent stones—such as Cristallo quartzite, onyx, translucent marble, and specialized quartz formulations—have emerged as the definitive material choice for high-impact surfaces. However, bringing out the intricate mineral veining, subtle background hues, and multidimensional depth of these materials requires an exceptional light source. Traditional backlighting methods, such as un-lensed flexible LED strip arrays or basic edge-lit light boxes, frequently struggle with inadequate light penetration, pronounced diode hot spots, thermal buildup, and complex installation requirements.

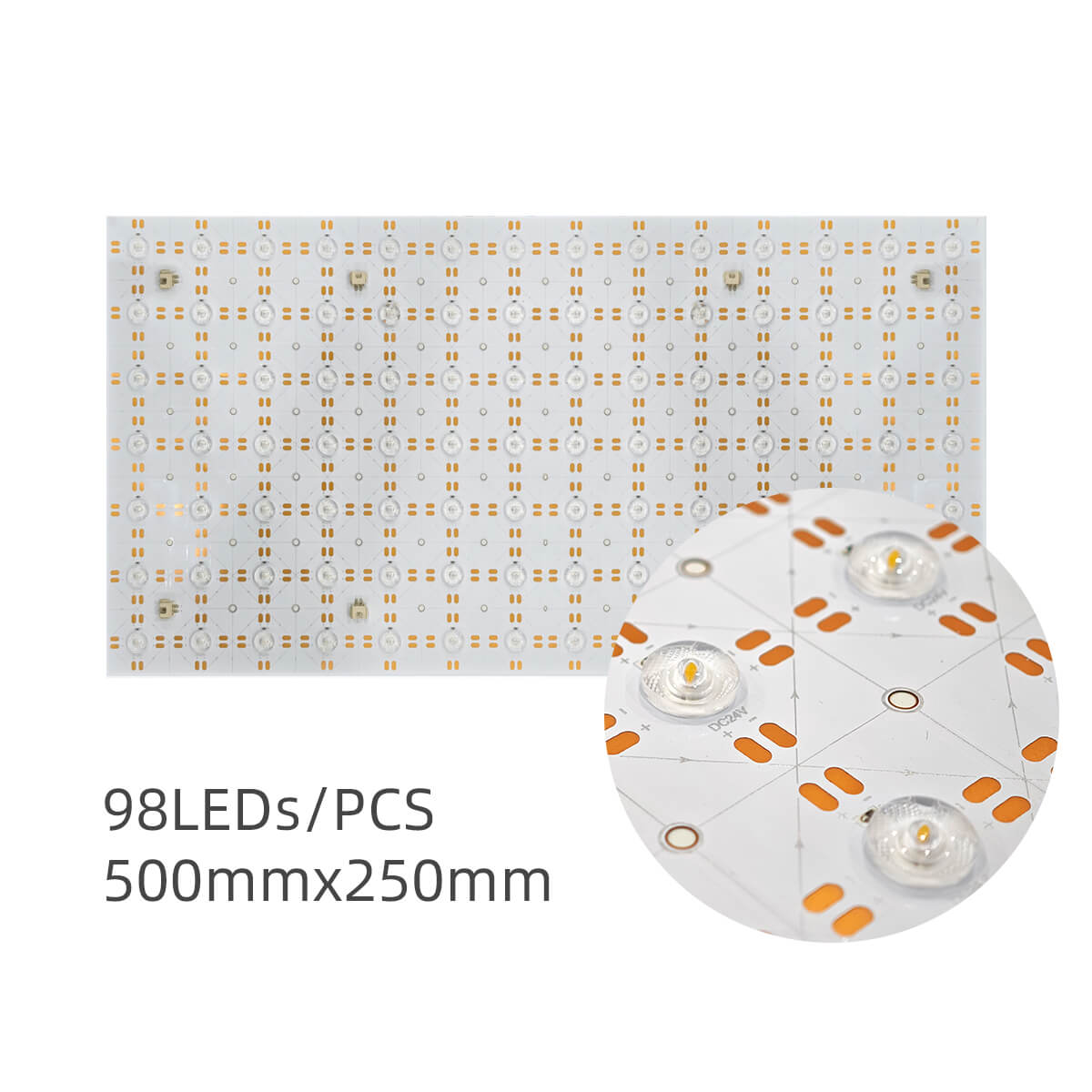

To solve these persistent optical and engineering challenges, leading stone fabricators, interior designers, and electrical contractors are turning to specialized matrix lighting solutions. Transform your kitchen island into a stunning centerpiece with our 98LEDs 500x250mm Lens-Type LED Panel – purpose-built for quartz, marble, and natural stone countertop backlighting. As a next-generation LED backlight panel, this system combines high-density diode placement with optical lens diffusion to deliver stunning, edge-to-edge stone illumination across both residential and commercial applications.

Engineered for Optical Power: The Lens-Optimized Advantage

The fundamental obstacle in backlighting 2cm or 3cm thick stone slabs is optical density. Dense quartz and heavily veined natural marble absorb a massive amount of luminous flux. Standard flat SMD LED boards push light outwards in a wide, unguided flood, causing much of the light intensity to dissipate inside the cavity or drop off before penetrating the surface of the stone.

Unlike standard LED panels, our integrated optical lens design delivers concentrated, high-penetration brightness that effortlessly shines through translucent stone surfaces, creating that coveted "glowing stone" aesthetic that defines modern luxury kitchens. By fitting each individual diode on our LED backlight panel with a specialized optical refraction lens, the emitted beam is precisely directed and distributed across the panel face. This lens geometry spreads light laterally while maintaining forward penetration, allowing light beams from neighboring diodes to overlap evenly within shallow cavity depths as small as 20mm to 30mm.

The result is a lens-optimized 98LEDs light sheet for glowing stone countertops with even illumination, ultra-thin profile, cuttable grid, and self-adhesive backing – ideal for luxury kitchen islands, reception desks, and vertical feature walls.

Key Selling Points & Architectural Advantages

When evaluating surface lighting systems for high-value stone installations, performance, ease of field fabrication, and long-term stability are paramount. The 98LEDs 500x250mm LED backlight panel stands out through a series of key features:

1. Optical Lens Penetration & Zero Diode Spotting

The custom-molded optical lens atop each diode wide-casts light at a calculated 160-degree angle. This eliminates the harsh point glare and "cheetah spot" patterns common with un-lensed LED tapes, ensuring a continuous, silky-smooth glow even across dense, low-translucency quartzite slabs.

2. Modular 500x250mm Form Factor with 98 High-Efficacy LEDs

Optimized for large surface coverage with minimal electrical connections, the 500mm x 250mm board dimension fits standard countertop overhang dimensions and kitchen cabinet footprints. Populated with 98 high-lumen, high-CRI LEDs, each LED backlight panel delivers maximum lumen output per square foot without generating excessive heat.

3. Field-Cuttable Matrix with Grid Trimming Pathways

Stone fabrication rarely involves perfectly uniform rectangular layouts. Sink cutouts, cooktop drop-ins, structural support posts, and electrical junction boxes require flexible on-site adjustments. This LED backlight panel features dedicated cutting paths along both its length and width, enabling installers to trim sheets down to precise shapes without breaking the remaining circuit pathways.

4. Pre-Applied 3M Self-Adhesive Backing for Fast Installation

Labor costs and field assembly time are major factors in commercial and residential renovations. Equipped with industrial-grade 3M high-tack thermal adhesive tape on the rear side, these panels bond securely to sub-countertop substrates like marine plywood, aluminum composite panels, or cement backer boards, eliminating the need for complex mechanical mounting channels.

5. Safe Low-Voltage Operation (24V DC) & Smooth Dimming Integration

Operating on a standard 24V DC Class 2 low-voltage circuit, the panel guarantees electrical safety in kitchen and bar environments. The system integrates effortlessly with PWM, 0-10V, Triac, and DALI dimming protocols, enabling home owners and venue managers to adjust light levels smoothly from full task brightness down to a subtle evening accent glow.

Applications of the LED Backlight Panel Across Modern Interiors

While purpose-built for residential kitchen surfaces, the versatility, slim profile, and optical strength of the 98LEDs LED backlight panel make it an essential solution across numerous architectural scenarios:

1. Luxury Kitchen Islands & Waterfall Edge Countertops

The central kitchen island is the focal point of modern residential design. Backlighting a translucent Cristallo or Patagonia quartzite top—along with vertical waterfall edges—turns the entire cooking and entertaining space into an architectural showpiece. The high penetration of the lens-type LED backlight panel reveals intricate crystalline structures that remain completely invisible under ambient room light.

2. Commercial Hospitality Bars & Cocktail Lounge Counters

In high-end restaurants, boutique hotel lounges, and nightclubs, backlit bar tops create an inviting, luxurious atmosphere that elevates the guest experience. The 24V LED backlight panel provides durable, continuous illumination capable of operating 24/7 while remaining cool enough to protect beverage displays and stone resin backing materials.

3. Executive Reception Desks & Corporate Lobby Feature Walls

First impressions in commercial buildings are set in the lobby. Backlighting large onyx or white alabaster wall panels behind reception desks creates a dramatic visual backdrop. Connecting multiple 500x250mm panels side-by-side establishes an uninterrupted, uniform field of light across expansive wall surfaces.

4. High-End Bathroom Vanities, Shower Noches & Spa Surrounds

Backlit stone vanities and floating glass sink tops add a soothing, spa-like feel to master bathrooms. When paired with appropriate IP-rated protective housings and sealed low-voltage drivers, these thin backlight panels slide behind mirror frames, vanity facings, and wall recesses without consuming precious bathroom square footage.

5. Backlit Onyx Wine Cabinets & Custom Millwork Displays

Custom wine cellars and luxury retail display cases benefit immensely from low-profile backlighting. Placing ultra-thin backlight panels behind translucent stone shelf backings highlights fine wine bottles and luxury products with clean, glare-free background illumination.

Technical Specification Matrix

Below is the technical performance overview for the 98LEDs 500x250mm Lens-Type LED backlight panel, designed to assist lighting specifiers, contractors, and engineers in project submittals:

Step-by-Step Countertop Backlighting Installation Guide

Proper installation is critical to achieving a seamless, durable glowing stone countertop. Stone fabricators and electricians should follow these installation steps:

1. Sub-Frame Preparation: Construct a flat, stable support frame (typically using plywood or metal tubing) underneath the countertop area. Paint the sub-frame surface bright white to maximize light reflection upwards towards the stone.
2. Layout Mapping & Trimming: Arrange the 500x250mm LED backlight panel sheets across the sub-frame. Mark cut lines for sink cutouts or cooktop openings. Trim panels precisely along designated grid cut lines using sharp shears.
3. Panel Bonding & Wiring Connections: Peel off the protective 3M adhesive backing and press each panel firmly onto the prepared substrate. Connect adjacent sheets using solderless plug-in jumpers or soldered lead wires, respecting electrical polarity (+24V / -24V).
4. Cavity Clearance Check: Ensure a minimum gap of 20mm to 35mm between the top of the LED lenses and the underside of the stone. For extremely shallow setups under 20mm, place an acrylic diffusion sheet between the panels and the stone.
5. Power Test & Stone Placement: Connect the main DC feed lines to a 24V Class 2 power supply. Power on the lighting assembly to perform a thorough visual test for full illumination before lowering the stone slab into position.

Frequently Asked Questions (B2B Customer FAQ)

Here are direct, expert answers to the most common questions raised by architects, stone fabricators, and electrical contractors regarding our LED backlight panel systems:

Elevate Your Next Architectural Stone Project

Illuminating natural stone countertops requires a lighting system built specifically for the physical and optical properties of translucent materials. With its high-penetration lens optics, 98-LED matrix density, 500x250mm modular size, field-cuttable flexibility, and self-adhesive backing, our LED backlight panel delivers the optical performance required to turn stone surfaces into glowing centerpieces.

Whether designing a luxury residential kitchen island, a boutique hotel lobby reception desk, or an exclusive cocktail bar, choose the system built specifically for backlit stone. Contact our engineering team today to request product samples, submittal data sheets, or a custom project lighting layout calculation.
