The Comprehensive Guide to LED Backlight Sheet Technology: Sourcing, Advantages, and Architectural Applications

In premium architectural engineering, interior design, and commercial space planning, establishing flawless area illumination presents a distinct mechanical challenge. Traditional point-source fixtures or linear strip lighting often introduce unwanted visual compromises, such as hot spots, scalloped shadows, or uneven lux density when projecting through translucent substrates. To achieve homogeneous, edge-to-edge luminosity across wide surfaces, structural specifiers rely on the advanced LED Backlight Sheet.

This thin, flexible solid-state light engine delivers high-performance illumination across a modular matrix circuit. Engineered for low-profile integration, a flexible 24V 36W matrix sheet allows architects, bespoke cabinetry builders, and lighting contractors to execute creative designs across complex, non-linear architectural planes. By blending multi-CCT color tuning with precise dimming profiles, this single product adaptation meets the strict aesthetic and functional demands of both high-end residential and high-traffic commercial builds.

Core Technical Advantages and Selling Points of the LED Backlight Sheet

Unlike standard linear tape lights or rigid lightboxes, the architectural-grade LED Backlight Sheet represents a major shift from linear lighting tracks to comprehensive area illumination. Its mechanical and electrical features deliver unique benefits throughout the product lifecycle.

1. Perfect Visual Uniformity (Dot-Free & Zero Hot Spots)

Traditional backlighting relying on parallel linear strips requires significant installation depth to allow independent light cones to blend seamlessly. If the mixing cavity is too shallow, distinct lines of light appear on the surface material. The LED Backlight Sheet eliminates this flaw by arranging high-efficiency diodes in an equidistant matrix across a two-dimensional board. This precise configuration ensures light blends almost instantly, allowing uniform diffusion through translucent materials even in ultra-slim enclosures with minimal mixing clearance.

2. Multi-Directional Field Customization (Grid-Cuttable Design)

No two architectural floor plans or custom furniture layouts share identical dimensions. The matrix sheet addresses this with an integrated, multi-directional grid cutting path. Field technicians can trim the flexible sheet horizontally, vertically, or diagonally with standard anti-static shears. Because the internal electrical circuits run in parallel, trimming the sheet to fit irregular shapes, match geometric cutouts, or clear structural obstructions like pipes or brackets does not disrupt power to the remaining active matrices.

3. Omnidirectional 3D Flexibility

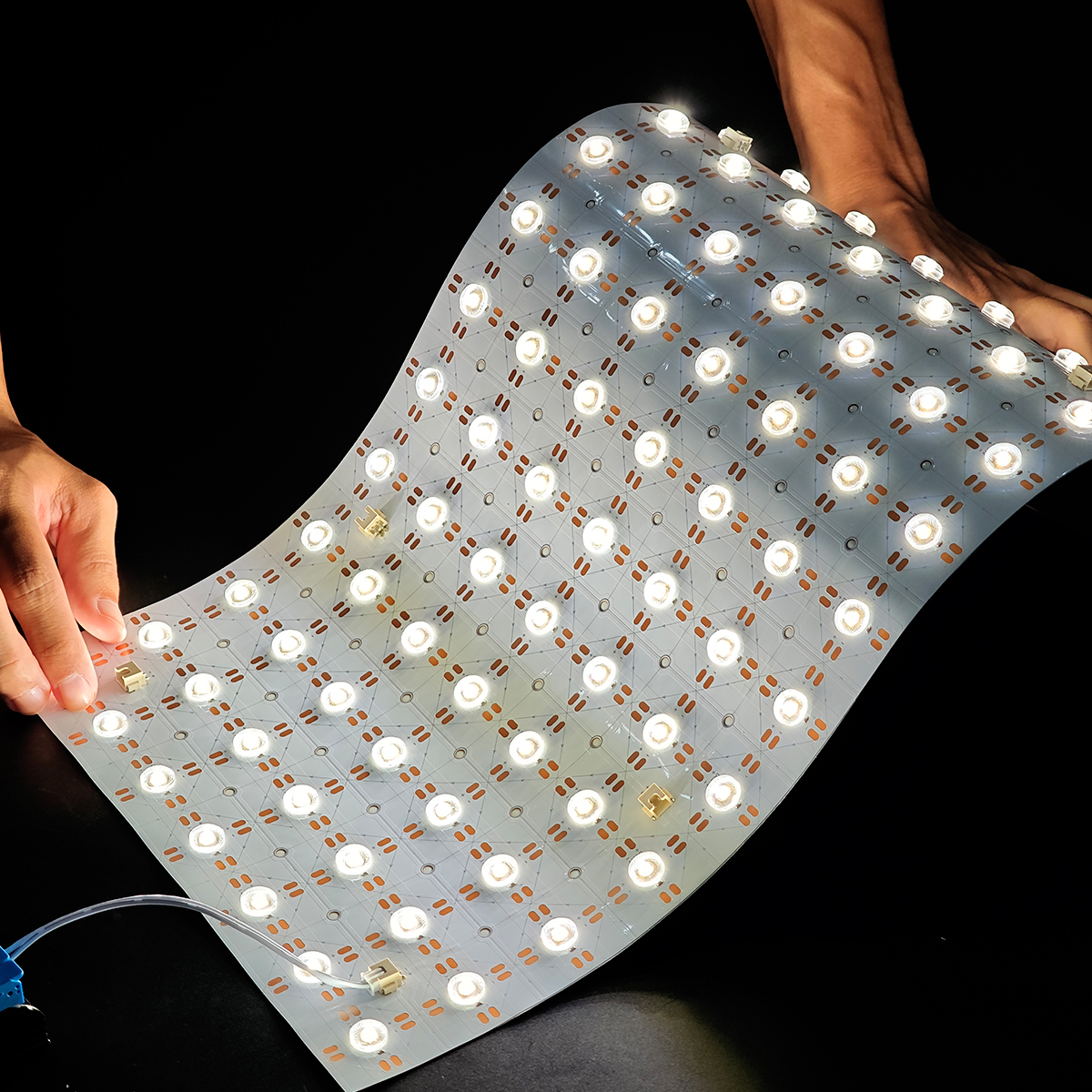

Rigid light-guiding plates (LGP) or acrylic backings are limited strictly to flat planes. Our advanced backlight sheet utilizes a highly ductile, dual-layer rolled copper PCB substrate. This material lets the panel contour seamlessly around columns, curve across concave or convex partitions, line the inner radiuses of custom display cases, or integrate smoothly into organic, parametric ceiling installations without cracking the circuit tracks.

4. Superior Thermal Dissipation & Material Protection

Heat accumulation is a primary cause of premature diode failure and color shifting. Built with high-thermal-conductivity copper backplanes, this 36W sheet excels at passive thermal management. Operating on a low-temperature 24V DC platform, it spreads heat evenly across its entire surface, preventing localized thermal stress. This protection is vital when backlighting expensive natural stone (like onyx or marble) or delicate translucent resins, safeguarding them from discoloration, micro-cracking, or warping over decades of use.

5. Substantial On-Site Labor Savings

For large-scale commercial retrofits, labor overhead is a major budget driver. Laying dozens of individual linear lighting tracks requires extensive measurement, repetitive mounting, and complex wiring webs. Conversely, a large-format backlight sheet installs rapidly via commercial-grade adhesive backings or integrated mounting points. Contractors can cover extensive square footage in minutes, reducing electrical installation labor costs by over 50%.

Strategic Application Scenarios: Elevating Multi-Functional Spaces

Because the LED Backlight Sheet combines mechanical flexibility with high-efficiency output, it serves as a multi-scenario lighting core across high-end residential, commercial, and hospitality projects.

1. Luxury Wet-Room Bathrooms & Spa Enclosures

Modern luxury bathroom design focuses heavily on creating a tranquil, spa-like ambiance. Backlighting vanity mirrors, floating stone countertops, or recessed shelving niches with matrix sheets establishes a soft, glare-free aesthetic. When sealed within water-resistant enclosures or paired with appropriate IP-rated protective layers, these low-voltage 24V sheets offer total electrical safety in high-moisture zones. The uniform light distribution eliminates harsh shadows under the eyes, providing ideal illumination for grooming tasks while elevating the room's visual depth.

2. High-End Living Rooms & Architectural Feature Walls

In custom residential architecture, living room media centers and accent walls frequently feature premium translucent stones, quartz slabs, or frosted art glass panels. Backlighting these expansive feature walls with an LED Backlight Sheet highlights the stone's natural veining and deep textures, turning structural walls into dynamic art installations. Additionally, the thin design allows these sheets to fit easily within shallow dropped ceilings or behind built-in entertainment millwork without requiring alcoves that take up valuable living space.

3. Hospitality Bar Counters & Tiered Liquor Displays

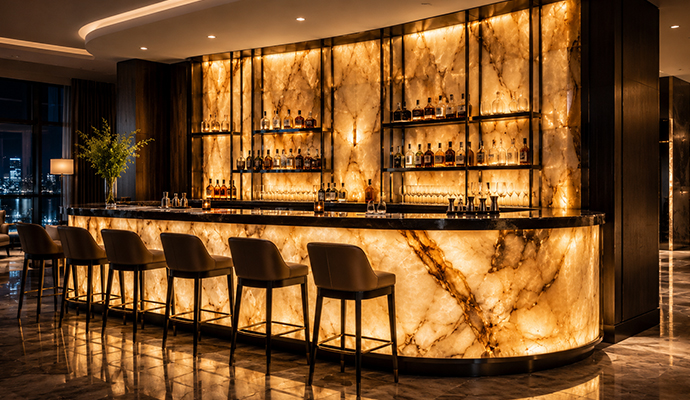

Commercial bars and lounge environments rely on striking visual branding to attract patrons. Backlighting the vertical fascia or horizontal top surfaces of bar counters with flexible sheets creates an immediate design focal point. When applied to tiered back-bar bottle shelving, the dot-free matrix ensures light passes uniformly through glass bottles and liquids without glare. Furthermore, the 3-CCT color-tuning capability allows venue operators to shift lighting profiles seamlessly—moving from a crisp, high-visibility daylight look for daytime events to a warm, inviting glow for late-night service.

4. Corporate Reception Desks & Brand Identity Hubs

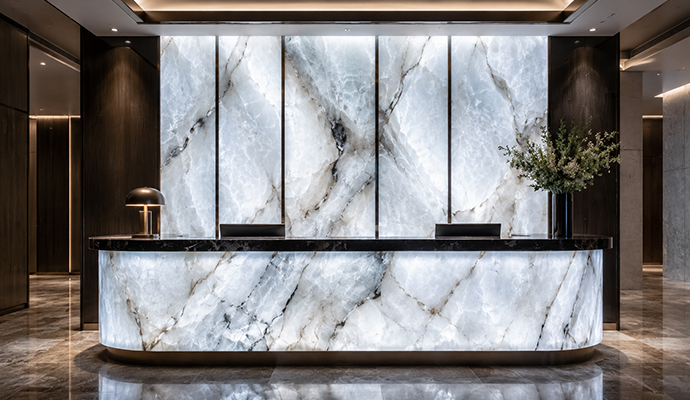

A corporate lobby's reception desk is the primary visual anchor for visiting clients and stakeholders. Incorporating a matrix backlight sheet behind a translucent front panel, logo graphic, or custom marble desk profile ensures clean, balanced illumination that reinforces high-end brand narratives. Because these sheets support continuous, flicker-free dimming protocols, they adjust easily to match shifting ambient light levels in glass-fronted atrium lobbies, maintaining a professional presence on high-speed security cameras and mobile displays.

Comprehensive Technical Performance Matrix

To assist procurement managers, electrical engineers, and project estimators, the following table lists the core technical parameters of our architectural-grade backlight sheet systems:

Standardized Contractor Installation & Wiring Protocols

To achieve a professional, edge-to-edge luminous finish, field integration must follow proper electrical and structural guidelines.

1. Substrate Review: Verify the mounting surface (drywall, wood cabinetry, or aluminum backing) is clean, non-conductive, and free of moisture or dust.
2. Field Tailoring: Measure the internal dimensions of the light box or stone support frame. Cut the LED Backlight Sheet using the printed grid guidelines to match the exact enclosure footprint, ensuring cutting paths stay clear of active diodes.
3. Fixing & Thermal Mounting: Remove the protective layer from the high-bond adhesive backing. Press the sheet firmly onto the substrate from the center outward to eliminate air pockets, ensuring excellent contact for passive thermal cooling. For vertical or overhead installations, use secondary mechanical fasteners through designated non-conductive anchoring points.
4. Electrical Interconnection: Connect adjacent sheet modules using plug-and-play jumper clips or direct low-profile soldering on the designated copper pads. Ensure all interconnected runs stay within the maximum wattage and current limits of the feed line.
5. Driver Calibration: Wire the main feed to a Class 2 compliant 24V DC constant voltage driver. Ensure total calculated wattage draws do not exceed 80% of the driver's nameplate capacity. Test the dimming ranges and check for absolute uniformity across the surface before completing the installation of the translucent material overlay.

The SYPLED Supply Chain Advantage for North American Professionals

Sourcing high-performance area-lighting components for large-scale hospitality upgrades or luxury residential projects requires a manufacturing partner that combines technical innovation with efficient logistics. Headquartered in Hayward, California, SYP LED TECH USA INC (SYPLED) serves as a premier North American furniture lighting and integrated home storage solution provider.

We streamline project lifecycles for general contractors, electrical builders, lighting designers, and high-end cabinetry makers by delivering fully certified, compatible systems where advanced solid-state lighting and premium architectural storage hardware match perfectly.

Why Choose SYPLED for Your Project Portfolio?

• Unified Spatial Engineering: We approach lighting and storage architecture as a single, cohesive system. By harmonizing state-of-the-art LED components with high-end cabinet and wardrobe systems, we eliminate design friction, shorten project coordination timelines, and guarantee an exact structural fit on every install.
• Local U.S. Presence & Reliable Logistics: Based in Hayward, California, our inventory and consultation facility protects your project timelines from international freight delays. We offer rapid domestic lead times, reliable stock management, and real-time technical consulting to resolve complex site or wiring challenges quickly.
• Industrial-Grade Compliance and Customization: Every SYPLED product undergoes rigorous testing to meet long-term durability standards. Our matrix light systems feature advanced thermal tracking and fully comply with UL and CE safety regulations. Furthermore, we offer extensive B2B OEM/ODM customization services—including custom wire leads, tailored color profiles, laser logo engraving, and project-specific dimensions built to your exact specifications.

Procurement Optimization Directive: Ensure your upcoming high-end feature walls, custom bars, and luxury cabinetry installations are backed by code-compliant thermal management and smooth dimming performance. Contact the SYPLED engineering division in California today to request comprehensive technical DXF files, official submittal packages, or custom factory samples for your next design portfolio review.
