The Definitive Guide to LED Lens Flexible Light Board Technology for Premium Stone Backlighting

In premium architectural engineering and luxury interior spatial design, achieving a flawless, high-impact backlit surface remains an demanding technical challenge. Traditional lighting methods, such as standard linear LED strips or un-lensed flexible matrices, frequently encounter significant physical roadblocks when tasked with illuminating thick, high-density materials. When projecting light through architectural quartz, heavy marble slabs, or natural translucent stones, standard light arrays often lack the necessary luminous intensity, resulting in washed-out illumination, dim zones, or visible diode patterns. To overcome these limitations and achieve true surface radiance, industry specifiers rely on the advanced LED Lens Flexible Light Board.

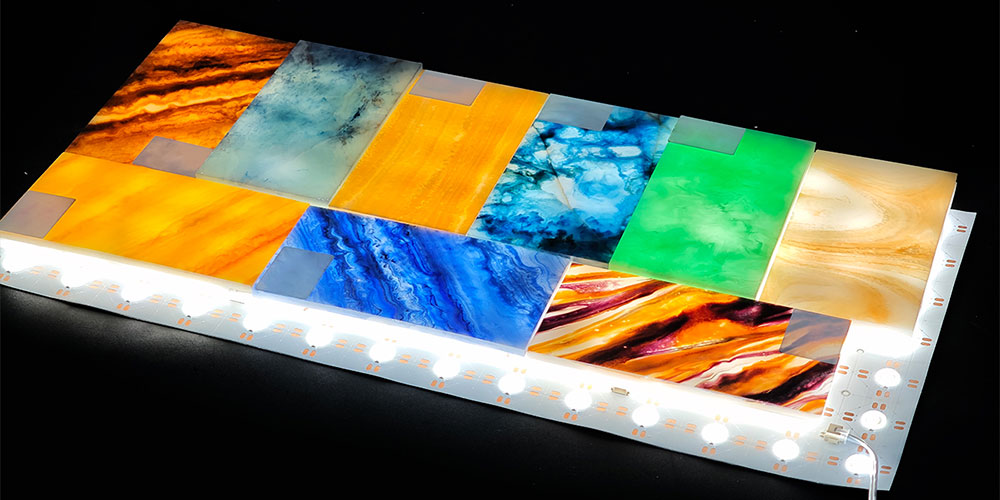

Representing a major advancement in solid-state surface engineering, the premium 98LEDs 500x250mm Lens-Type LED Panel is purpose-built to solve the most difficult material backlighting challenges. By integrating dedicated optical lenses directly onto a flexible, high-density matrix, this specialized light engine transforms thick countertops and massive structural walls into vibrant, luminous centerpieces. Whether executing a luxury kitchen transformation or developing high-profile commercial surfaces, incorporating an LED Lens Flexible Light Board delivers the precise optical penetration and structural durability required to define modern luxury architecture.

The Physics of Optical Refraction: Why Integrated Lenses Outperform Standard Panels

To understand the competitive edge of a lens-type matrix over standard flat-surface panels, one must examine the behavior of light passing through dense crystalline mediums. Standard surface-mounted diodes (SMDs) emit light in a wide, un-focused 120-degree cone. When this un-directed light hits the irregular internal crystalline boundaries of natural stones like quartzite, marble, or consolidated quartz, a massive percentage of the lumens scatter sideways or bounce backward, trapped inside the material. This phenomenon significantly lowers surface brightness and forces contractors to design deep, bulky mixing cavities to blend the light uniformly.

The LED Lens Flexible Light Board completely re-engineers this path by placing a custom-engineered optical lens over every single one of its 98 high-output diodes. These integrated lenses alter the native light emission curve, shaping and amplifying the raw light output into a highly concentrated, vertical beam. This directed beam easily pierces through dense natural stone slabs up to 2cm or 3cm thick. Instead of losing light energy to internal lateral scattering, the focused lenses push maximum illumination directly to the front face of the material. This advanced design produces the uniform, high-penetration brightness required to create the highly sought-after "glowing stone" aesthetic, elevating standard interior fittings into captivating architectural features.

Core Technical Advantages and Unique Selling Points

Sourcing engineered lighting for high-end project submittals requires a deep understanding of hardware reliability and performance. The lens-type flexible board offers distinct mechanical and photometric advantages that make it an essential asset for commercial and residential specifiers:

• High-Penetration Optical Lens Architecture: The primary feature of this light board is its custom lens overlay. It maximizes light projection, allowing even low-translucency marble and engineered stone variations to illuminate beautifully without requiring extreme, energy-inefficient wattages.
• Optimized Large-Format Form Factor (500x250mm): The 500x250mm geometric footprint provides an ideal balance between broad area coverage and field modularity. Designers can easily tile these panels across massive surface footprints, maintaining a highly organized, grid-aligned lighting layout that avoids erratic wiring paths.
• 98 High-Output LED Density Matrix: Featuring 98 structurally optimized, low-tolerance diodes per sheet, the layout provides exceptional lumen density. The precise spacing ensures complete edge-to-edge uniformity across the stone panel, preventing dark zones or grid shadows even when the stone is mounted close to the light source.

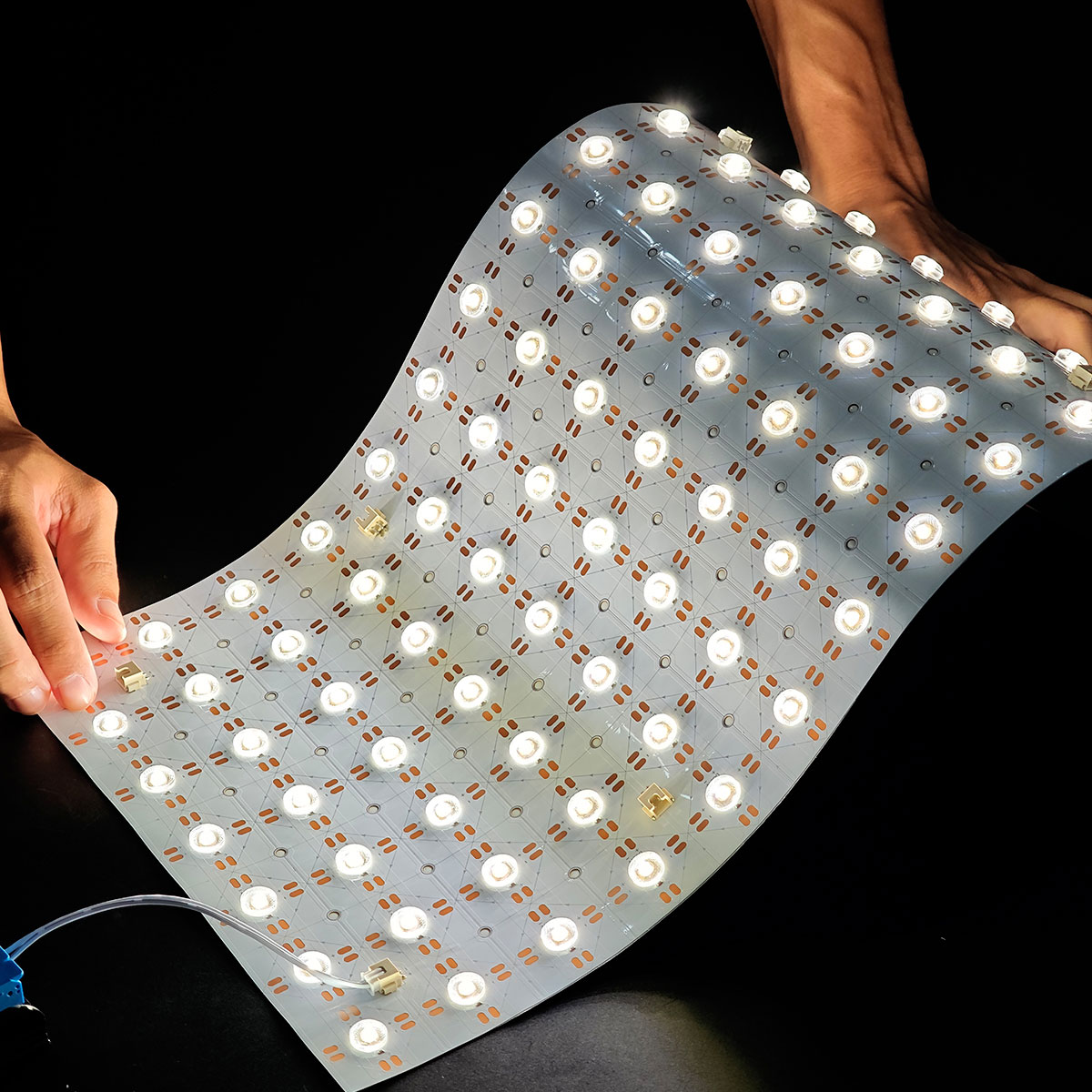

• Flexible, Multi-Axis Substrate Adaptability: Built on a durable, dual-layer rolled copper flexible PCB, the board easily bends to follow non-linear shapes. It contours around curved kitchen bars, architectural columns, or custom curved furniture without cracking the internal copper circuits or breaking connection points.
• Advanced 24V DC Constant-Voltage Architecture: Operating on a low-voltage 24V DC platform, the board ensures excellent electrical safety and system stability. The 24V design keeps operating currents low, reducing line resistance and preventing progressive voltage drop across large, interconnected installations.
• Passive Thermal Efficiency & Material Protection: Heavy marble and quartz countertops act as thermal insulators, trapping heat. The board's thick copper backing efficiently draws heat away from the diodes, preventing thermal accumulation. This low operating temperature protects expensive natural stone selections from structural stress, cracking, or discoloration over decades of continuous use.

Strategic Application Scenarios: Elevating Architectural Surfaces

Thanks to its focused optical performance and flexible form factor, the LED Lens Flexible Light Board delivers outstanding results across a wide variety of high-end commercial, hospitality, and residential environments.

1. Luxury Kitchen Islands & Countertops

In modern residential architecture, the kitchen island serves as the central visual anchor of the home. Backlighting thick quartz, marble, or quartzite island surfaces with standard lighting often yields disappointing results due to poor light penetration through the stone's thickest sections. Installing the 500x250mm lens panel directly into the under-counter support frame directs high-intensity light upward through the slab. This turns the entire stone workspace into a radiant centerpiece, accentuating natural veining and crystal structures to define a luxurious kitchen aesthetic.

2. Premium Wet-Room Bathrooms & Floating Stone Vanities

Modern spa-like bathrooms focus heavily on clean lines and hidden ambient light sources. Applying the LED Lens Flexible Light Board behind translucent alabaster wall cladding, floating quartz vanity tops, or integrated shower alcoves creates an upscale, calming atmosphere. Operating on safe 24V DC power, these sheets can be safely integrated into wet zones when installed within code-compliant, moisture-sealed enclosures. The lensed optics provide bright, glare-free ambient light that eliminates harsh shadows under vanity mirrors, making grooming tasks easier while expanding the room's visual depth.

3. Hospitality Bar Counters & Tiered Lounge Displays

High-end commercial lounges, boutique hotels, and nightclubs rely on impactful visual branding to create memorable guest experiences. Backlighting the vertical front fascia or horizontal serving tops of bar counters with flexible lens boards generates immediate visual draw. When applied below tiered bottle steps on the back bar, the focused light passes directly through glass bottles and liquids without causing glare for bartenders or patrons. The high diode density ensures smooth, uniform light across long bar runs, adapting effortlessly to shifting venue layouts.

4. Corporate Reception Desks & Brand Identity Front Desks

A corporate lobby's reception area is the first physical point of contact for clients, partners, and future stakeholders. Integrating a lens-equipped flexible light board behind a translucent frontal stone slab or brand logo panel ensures bold, high-contrast illumination that conveys corporate prestige. Because these light boards support smooth, flicker-free dimming protocols, the reception desk's lighting level can be adjusted easily to match changing natural light in glass-clad atriums, ensuring a crisp, premium appearance both in person and on security or media camera displays.

5. High-End Living Rooms & Large Feature Walls

In luxury residential builds, living room media centers or fireplace accent walls often showcase large slabs of exotic translucent stones like onyx. Standard lighting methods fail to highlight the deep, intricate internal details of these expensive materials. The concentrated light from the lensed flexible board brings these natural patterns to life, turning walls into dynamic art features. The ultra-slim design of the flexible board allows it to fit neatly inside shallow wall spaces, maximizing usable floor space in premium residential layouts.

Comprehensive Technical Performance Specifications

To assist electrical engineers, lighting designers, and project estimators with technical submittals, the following table details the key performance parameters of our lensed matrix systems:

Standardized Field Installation Guide for Contractors

Achieving a professional-grade, uniform translucent surface requires systematic installation and precise field execution:

1. Structural Substrate Preparation: Ensure the internal mounting frame or backing wall is structural, clean, dry, and free of dust or oils. For maximum light efficiency, line the backing cavity with a highly reflective white material or foil layer.
2. Layout Mapping & Fitting: Map out the 500x250mm sheet placement to fit the stone countertop or feature wall dimensions. Arrange the panels in a consistent grid to keep diode spacing perfectly uniform across the entire surface.
3. Mechanical Mounting: Carefully peel back the protective film from the high-bond adhesive backing. Press the LED Lens Flexible Light Board firmly onto the substrate from the center outward to ensure total contact, which maximizes passive thermal cooling. Use integrated mounting points for secondary mechanical fasteners in vertical or overhead applications.
4. Electrical Interconnection & Wiring: Link adjacent light sheets using modular plug-and-play jumper cables or direct low-profile soldering on the designated copper pads. Ensure the total cumulative power draw stays within the maximum capacity limits of the main power feed line.
5. Power Driver Integration & Testing: Connect the primary power lines to a Class 2 compliant 24V DC constant voltage power supply. To protect the power supply from heat strain, ensure the total wattage load does not exceed 80% of the driver's rated capacity. Run a full dimming and illumination test before final installation of the translucent stone panel.

The SYPLED Supply Chain Advantage for North American B2B Professionals

Sourcing high-performance solid-state lighting for high-value hospitality builds or bespoke residential projects requires a dependable manufacturer that balances engineering innovation with efficient logistics. Headquartered in Hayward, California, SYP LED TECH USA INC (SYPLED) is a premier North American furniture lighting and integrated home storage solution provider.

We simplify procurement workflows for general contractors, electrical builders, lighting designers, and high-end cabinetry makers by delivering fully certified, compatible systems where advanced solid-state lighting and premium architectural storage hardware match perfectly.

Why Choose SYPLED for Your Project Portfolio?

• Unified Spatial Engineering: We approach lighting and storage architecture as a single, cohesive system. By harmonizing state-of-the-art LED components with high-end cabinet and wardrobe systems, we eliminate design friction, shorten project coordination timelines, and guarantee an exact structural fit on every install.
• Local U.S. Presence & Reliable Logistics: Based in Hayward, California, our inventory and consultation facility protects your project timelines from international freight delays. We offer rapid domestic lead times, reliable stock management, and real-time technical consulting to resolve complex site or wiring challenges quickly.
• Industrial-Grade Compliance and Customization: Every SYPLED product undergoes rigorous testing to meet long-term durability standards. Our matrix light systems feature advanced thermal tracking and fully comply with UL and CE safety regulations. Furthermore, we offer extensive B2B OEM/ODM customization services—including custom wire leads, tailored color profiles, laser logo engraving, and project-specific dimensions built to your exact specifications.

Procurement Optimization Directive: Ensure your upcoming high-end feature walls, custom bars, and luxury cabinetry installations are backed by code-compliant thermal management and smooth dimming performance. Contact the SYPLED engineering division in California today to request comprehensive technical DXF files, official submittal packages, or custom factory samples for your next design portfolio review.
