The Flexible Art Of Lighting UP Space - LED Marble Backlight Flexible Light Board

Natural stone has always been the ultimate expression of luxury in interior architecture. From the deep, dramatic veining of Italian Calacatta marble to the translucent, ethereal depths of exotic onyx, these materials bring an organic grandeur to any space. However, when night falls or ambient light shifts, the true internal character, crystalline texture, and multi-layered depth of the stone can easily be lost in the shadows. Traditional front-lighting often creates distracting surface glare, washing out the intricate details beneath the polished finish.

The solution lies in a structural shift from external reflection to internal illumination. The LED Marble Backlight Flexible Light Board completely redefines how we interact with architectural stone elements. Say goodbye to glaring light spots and give stone and home a second layer of vitality. This engineered matrix is not only a lamp, but also an artifact for creating a sophisticated atmosphere. By casting a perfectly uniform, high-intensity glow through the stone's crystalline lattice, it brings out the material's hidden colors and sweeping veins, transforming static walls and counters into living art features.

Uncompromising Performance: Core Advantages and Engineering Selling Points

Specifying area lighting for fragile, high-value marble installations leaves no room for error. Standard LED tape lights or rigid acrylic panel alternatives frequently introduce visual compromises and installation risks. The architectural-grade LED Marble Backlight Flexible Light Board is designed from the ground up to solve these field challenges through superior mechanical and photometric engineering.

1. Flawless Area Uniformity (Zero Hot Spots or Line Shadows)

When standard linear light strips are placed behind translucent stone, they create distinct stripes of light separated by dark gaps, known in the industry as "rib shadow" or linear hot-spotting. This product eliminates that issue entirely. By spacing premium, low-tolerance diodes in an equidistant, two-dimensional matrix array, the light output blends almost instantly. This allows developers to design ultra-slim stone features with minimal clearance, achieving edge-to-edge light diffusion without any visible hot spots or grid patterns.

2. Multi-Axis 3D Flexibility for Curved Surfaces

Modern high-end interior spaces frequently feature organic shapes, including sweeping curved bars, rounded reception fronts, and massive structural stone columns. Rigid light-guide plates (LGPs) are limited strictly to flat planes. Built on a highly ductile, dual-layer rolled copper flexible PCB substrate, this backlight board bends, shapes, and wraps easily around complex concave or convex radiuses without cracking the internal power tracks or damaging connection joints.

3. Multi-Directional Grid-Cuttable Customization

Architectural stone projects rarely match standard layout dimensions. The board addresses this with an integrated, cross-directional cutting grid. Installation teams can trim the flexible matrix board horizontally, vertically, or diagonally with standard tools. Because the internal circuitry is wired in a highly resilient parallel layout, cutting sheets to fit irregular geometry, angled walls, or around internal wall pipes and hardware supports does not interrupt power to the remaining active sections.

4. Low-Temperature Operation and Stone Surface Protection

Natural stone slabs contain complex chemical properties and moisture levels that react to localized thermal stress. Concentrated heat from low-grade lighting can cause expensive marble to warp, discolor, or develop structural micro-fissures over time. Operating on a highly stable, low-voltage 24V DC platform and backed by high-conductivity copper layers, this flexible board manages heat passively and evenly across its entire surface. It keeps operating temperatures low, safeguarding the integrity of your stone installation for decades.

Multi-Scenario Applications: Bringing Luxury Spaces to Life

The combination of ultra-slim thickness, omnidirectional bending capability, and balanced light output makes the LED Marble Backlight Flexible Light Board an essential design element across high-end residential, commercial, and hospitality environments.

1. Luxury Wet-Room Bathrooms & Spa Enclosures

Modern luxury bathroom design focuses heavily on creating a tranquil, wellness-focused atmosphere. Integrating the flexible backlight board behind floating marble vanities, translucent quartz wall cladding, or recessed shower niches creates a premium, ambient glow. When housed in moisture-resistant enclosures, the 24V DC low-voltage design provides total electrical safety in wet zones. The uniform light distribution eliminates harsh glare under vanity mirrors, offering flattering illumination for daily grooming while adding luxurious visual depth to the room.

2. High-End Living Rooms & Architectural Feature Walls

In luxury residential builds, the living room or great room serves as the central design showcase. Backlighting grand feature walls composed of translucent book-matched onyx or premium marble slabs with a flexible light board highlights the stone's rich textures and natural veining, turning an ordinary wall into a captivating art installation. Additionally, the thin, low-profile design of the flexible matrix allows it to fit easily within shallow walls or behind built-in entertainment millwork, maximizing usable floor space.

3. Hospitality Bar Counters & Tiered Lounge Displays

Boutique hotels, cocktail lounges, and high-end restaurants rely on striking visual branding to elevate the guest experience. Installing the LED Marble Backlight Flexible Light Board directly behind vertical marble bar facings or beneath translucent stone tabletops creates a vibrant visual anchor. For back-bar displays, the even, dot-free lighting passes beautifully through glassware and bottles without creating distracting glare for guests or bartenders, maintaining a cohesive, sophisticated atmosphere.

4. Corporate Reception Desks & Brand Identity Front Desks

A corporate lobby's reception desk is the first physical point of contact for clients, partners, and key stakeholders. Incorporating a flexible matrix backlight board behind a translucent frontal stone face or illuminated logo backdrop delivers bold, high-contrast illumination that communicates corporate prestige. Because these light boards support smooth, flicker-free dimming protocols, the reception desk's lighting level can be adjusted easily to match changing natural light in glass atriums, ensuring a crisp, premium appearance both in person and on security camera displays.

Comprehensive Technical Performance Matrix

To assist procurement managers, electrical engineers, and project estimators with technical submittals, the following table details the key performance parameters of our flexible light board systems:

Standardized Contractor Installation & Wiring Protocols

Achieving a professional-grade, uniform translucent surface requires systematic installation and precise field execution:

1. Structural Substrate Review: Verify the mounting surface (drywall, wood cabinetry, or aluminum backing) is clean, non-conductive, and completely free of moisture or dust. For maximum light efficiency, line the backing cavity with a highly reflective white material or foil layer.
2. Field Layout Mapping: Measure the internal dimensions of the light box or stone support frame. Arrange the LED Marble Backlight Flexible Light Board modules in a consistent grid layout to maintain uniform diode spacing across the entire surface footprint.

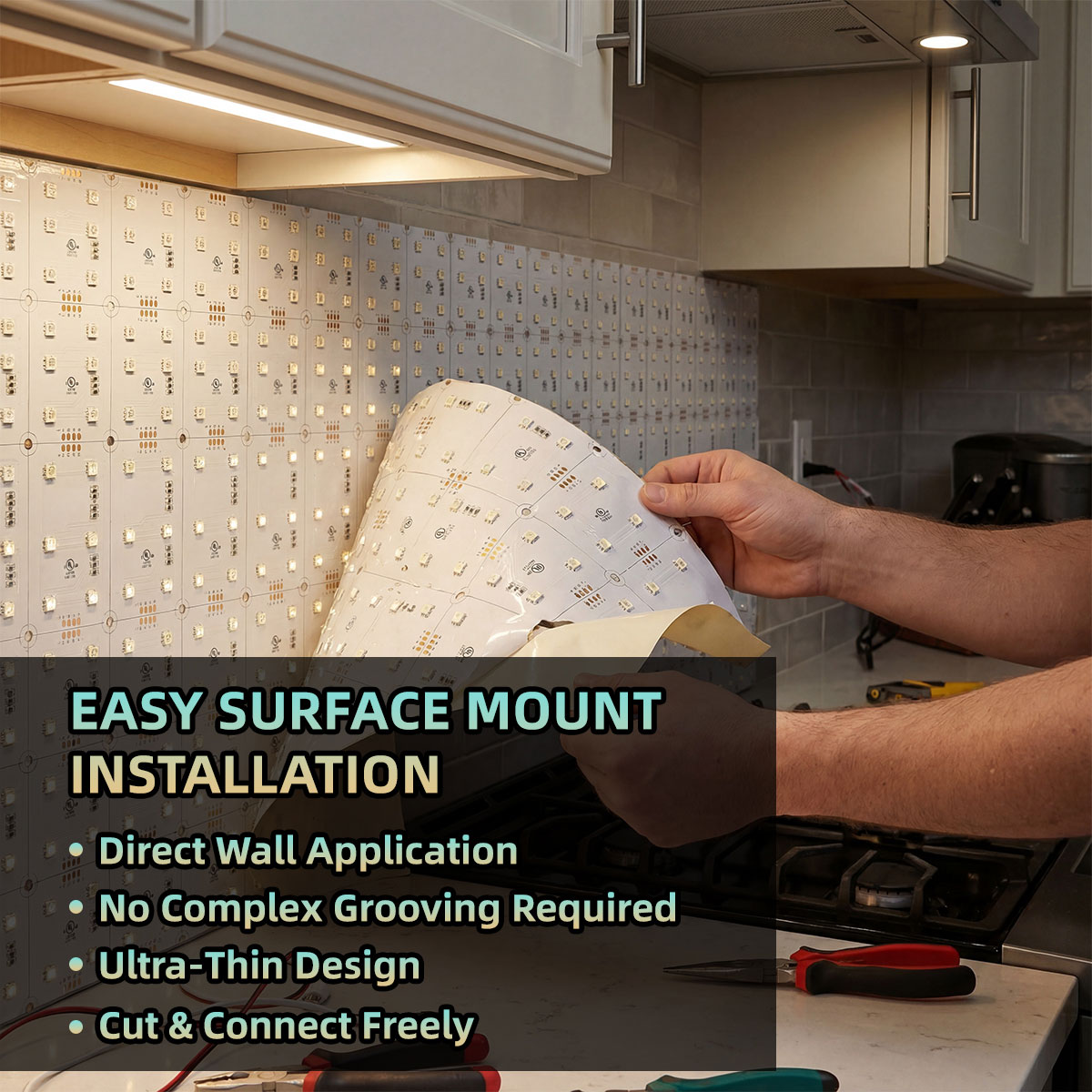

3. Mechanical Mounting: Carefully peel back the protective film from the high-bond adhesive backing. Press the flexible light board firmly onto the substrate from the center outward to ensure total contact, which maximizes passive thermal cooling. Use integrated mounting points for secondary mechanical fasteners in vertical or overhead applications.
4. Electrical Interconnection: Link adjacent light sheets using modular plug-and-play jumper cables or direct low-profile soldering on the designated copper pads. Ensure the total cumulative power draw stays within the maximum capacity limits of the main power feed line.
5. Power Driver Integration & Testing: Connect the primary power lines to a Class 2 compliant 24V DC constant voltage power supply. To protect the power supply from heat strain, ensure the total wattage load does not exceed 80% of the driver's rated capacity. Run a full dimming and illumination test before final installation of the translucent stone panel.

The SYPLED Supply Chain Advantage for North American B2B Professionals

Sourcing high-performance solid-state lighting for high-value hospitality builds or bespoke residential projects requires a dependable manufacturer that balances engineering innovation with efficient logistics. Headquartered in Hayward, California, SYP LED TECH USA INC (SYPLED) is a premier North American furniture lighting and integrated home storage solution provider.

We simplify procurement workflows for general contractors, electrical builders, lighting designers, and high-end cabinetry makers by delivering fully certified, compatible systems where advanced solid-state lighting and premium architectural storage hardware match perfectly.

Why Choose SYPLED for Your Project Portfolio?

• Unified Spatial Engineering: We approach lighting and storage architecture as a single, cohesive system. By harmonizing state-of-the-art LED components with high-end cabinet and wardrobe systems, we eliminate design friction, shorten project coordination timelines, and guarantee an exact structural fit on every install.
• Local U.S. Presence & Reliable Logistics: Based in Hayward, California, our inventory and consultation facility protects your project timelines from international freight delays. We offer rapid domestic lead times, reliable stock management, and real-time technical consulting to resolve complex site or wiring challenges quickly.
• Industrial-Grade Compliance and Customization: Every SYPLED product undergoes rigorous testing to meet long-term durability standards. Our matrix light systems feature advanced thermal tracking and fully comply with UL and CE safety regulations. Furthermore, we offer extensive B2B OEM/ODM customization services—including custom wire leads, tailored color profiles, laser logo engraving, and project-specific dimensions built to your exact specifications.

Procurement Optimization Directive: Ensure your upcoming high-end feature walls, custom bars, and luxury cabinetry installations are backed by code-compliant thermal management and smooth dimming performance. Contact the SYPLED engineering division in California today to request comprehensive technical DXF files, official submittal packages, or custom factory samples for your next design portfolio review.
